Type | Laboratoire | Nom de l'ASIC / contact | Caractéristiques | Photos |
---|---|---|---|---|
Analogique | LPC Caen | MCC²SA (Multi-Channel Configurable Charge Sensitive Amplifier) Contact : sdrouet@lpccaen.in2p3.fr | Technology : AMS 0,35µm CMOS Datasheet : MCC2SA.pdf Application : Nuclear Physics, Si detector | |
Analogique | IP2I Lyon | LARZIC (Liquid Argon Zygote Intergrated Circuit) Contact : Edouard Bechetoille | Technology : AMS 0,35µm CMOS Datasheet : En cours... Application : Liquid Argon Time Projection Chamber. Dedicated to Neutrino DUNE experiment | |
Analogique (+mixte busI2C) | APC Paris | AwaXe_v3 (ATHENA warm ASIC for the X-IFU electronics) Contact : Si Chen, Damien Prêle | Technology : AMS 0,35µm BiCMOS Datasheet : AwaXe_v3.pdf Application : Control and low-noise readout of superconducting multiplexed detection chain for spaceborne instrument ATHENA X-IFU | |
Analogique (+mixte : DACs) | APC Paris | AwaXe_v4 (intermediate test analog functions for AwaXe in ST) Contact : Si Chen, Jean Mesquida, Damien Prêle | Technology : ST 130 nm BiCMOS Datasheet : AwaXe_v4.pdf Application : Transposition of the LNA and the DAC of the AwaXe_v3 into ST technology, in preparation of the spaceborne instrument ATHENA X-IFU | |
Analogique | APC Paris | AwaXe_v4dot5LNA (updated version of the AwaXe_v4 LNA with internal biasing and offset compensation) Contact : Si Chen, Damien Prêle | Technology : ST 130 nm BiCMOS Datasheet : ask contacts for internal documentations Application : SQUID amplification and offset compensation, in preparation of the spaceborne instrument ATHENA X-IFU | |
Mixte analogique DAC | APC Paris | AwaXe_v4dot5DAC (updated version of the AwaXe_v4 DAC with INL Contact : Jean Mesquida, Si Chen, Damien Prêle | Technology : ST 130 nm BiCMOS Datasheet : ask contacts for internal documentations Application : SQUID and TES biasing, in preparation of the spaceborne instrument ATHENA X-IFU | |
"Numérique" | APC Paris | AwaXe_v5FC (intermediate test digital functions RS4895 and I2C RHBD full custom in ST) Contact : Si Chen, Jean Mesquida, Damien Prêle, Manuel Gonzalez , Bernard Courty | Technology : ST 130 nm BiCMOS Datasheet : ask contacts for internal documentations Application : Transposition of the bus of the AwaXe_v3 into ST technology, in preparation of the spaceborne instrument ATHENA X-IFU | |
Numérique | APC Paris / Weeroc | AwaXe_v5DF (intermediate radhard by design I2C in ST using the digital flow) Contact : Si Chen, Jean Mesquida, Damien Prêle, Manuel Gonzalez , Bernard Courty , Julien Fleury | Technology : ST 130 nm CMOS Datasheet : ask contacts for internal documentations Application : Transposition of the bus of the AwaXe_v3 into ST technology using the digital flow, in preparation of the spaceborne instrument ATHENA X-IFU | |

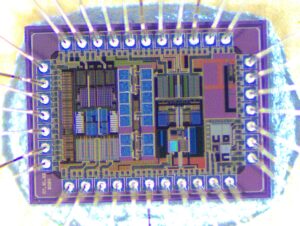

Analogique | "R&T BiCMOS" team : APC, IP2I, LPCA, LPC Caen, SUBATECH | R&T_SiGe Contact : Didier Charrier | Technology : IHP SG13S, 130nm SiGe Datasheet : to be done Application : building blocks for the evaluation of the IHP SG13S technology : LNA, TIA, Thermometer, CMOS amplifier, NPN arrays. Nuclear and astroparticle physics | |
Analogique | SUBATECH | LONAMOS (LOw Noise Amplifier in MOS technology) Contact : Didier Charrier | Technology : AMS C35B4C3, 350nm CMOS 20MHz features, LNA with 2:1 output BALUN * NFmin < 1dB in [1-100]MHz * IIP3 : 1.1V, OIP3 : 33dBm * BW : 100kHz-200MHz * Gv : 19.3dB * Zin : 297ohm // 6pF, 3 modes * Max out dyn : 3 Vpp on 50ohm load Application : RF LNA for active antennas. * Radio detection cosmic rays experiment : CODALEMA/EXTASIS, TREND/GRAND * LF radio astronomy : NenuFAR(SKA) | |

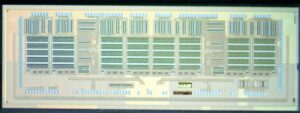

Analogique (+mixte : DACs) | APC Paris | AwaXe_v6/EM (ATHENA warm ASIC for the X-IFU electronics) 2 full channels for ATHENA X-IFU readout Contact : Si Chen, Jean Mesquida, Damien Prêle | Technology : ST 130 nm BiCMOS 6550 μm x 2140 μm Datasheet en preparation |
